Type：

MZ、MZP

Main Specification：

Number of Cores： 4、5Cores
Cross-section：2.5~4mm²

Rated Voltage：

0.3/0.5kV

Standard：

MT 818.8-2009《Rated Voltage 0.3/0.5kV Coal-mining Electric Drill, Rubber Sheathed, Flame-retardant Cable》

Products Introduction：

Products Introduction: Apply to connections between powers of the electric drill with rated voltage of 0.3/0.5kV in the coal-mining pit. This type of product has the advantage of high reliability, which is widely used in mines.

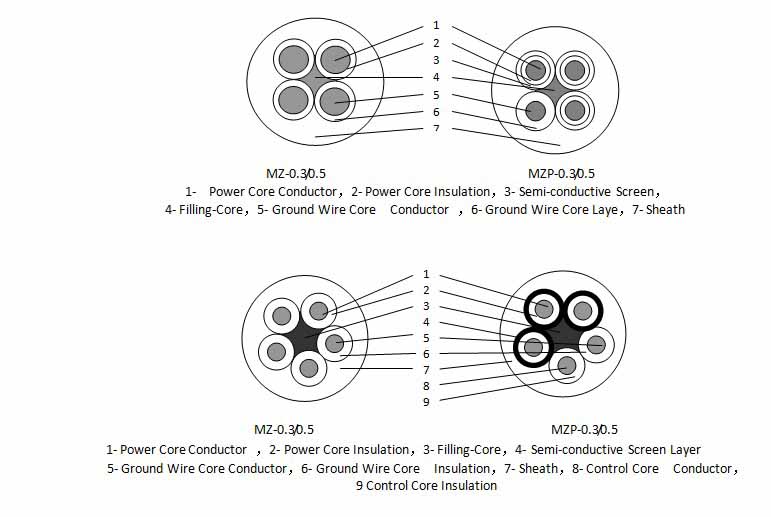

Cable Structure Drawing：
