Type：

MYPT、MYP

Main Specification：

Number of Cores： 3、3+1Cores
Cross-section：35~120mm²、16~120mm²

Rated Voltage：

1.9/3.3kV、3.6/6kV

Standard：

MT 818.7-2009《Rated Voltage 3.6/6kV and below, Coal-mining, Mobile Screen, Rubber Sheathed, Flame-retardant, Flexible Cable》

Products Introduction：

Products Introduction: Apply to connections between powers of the mobile coal-winning machine with rated voltage of 1.9/3.3kV, and connections between powers of mobile ground mining machine with rated voltage of 3.6/6kV.This type of product has the advantage of high reliability, which is widely used in mines.

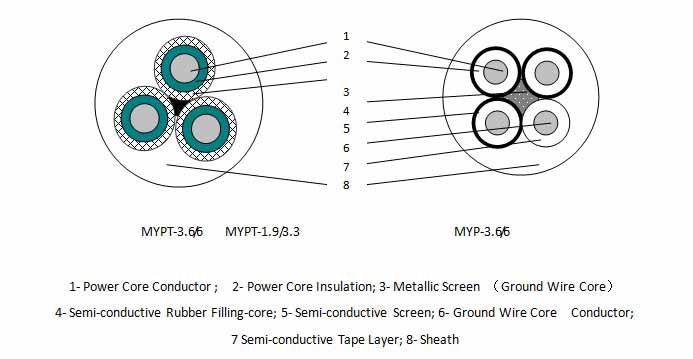

Cable Structure Drawing：
