Type：

MYPTJ

Main Specification：

Number of Cores： 3Cores
Cross-section：25~120mm²

Rated Voltage：

3.6/6kV、6/10kV

Standard：

MT 818.6-2009《Rated Voltage 6/10kV and below, Coal-mining, Mobile, Metallic Screen, Monitoring, Rubber-sheathed, Flame-retardant, Flexible Cable》

Products Introduction：

Products Introduction: Apply to connections between powers of mobile transformers and such equipment with rated voltage of 3.6/6kV and 6/10kV in the pits.This type of product has the advantage of high reliability, which is widely used in mines.

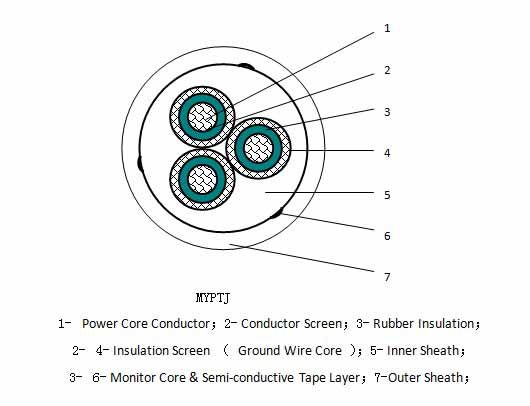

Cable Structure Drawing：
