Type：

MCPT、MCPTJ

Main Specification：

Number of Cores：3+1+1、3+1+3Cores
Cross-section：16~120mm²、25~120mm²

Rated Voltage：

0.66/1.14kV、1.9/3.3kV

Standard：

MT 818.4-2009《Rated Voltage 1.9/3.3kV and below, Coal-winning Machine, Metallic Screen, Rubber Sheathed,Flame-retardant Flexible Cable》

Products Introduction：

Products Introduction: Apply to rated voltage of 1.9/3.3kV and below, coal-winning machine/metallic screen/rubber sheathed/flame-retardant/flexible cable, used by fixed laying, moving and winding, transmit power for machine and equipment in mines. This type of product has the advantage of high reliability, which is widely used in mines.

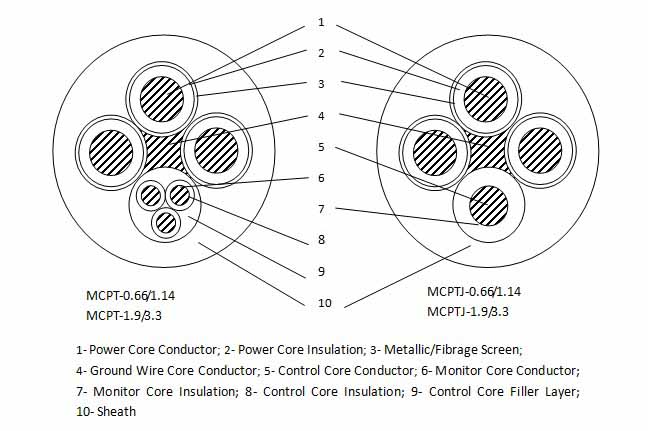

Cable Structure Drawing：
