Type：

F-110/FND-RTW

Main Specification：

Number of Cores： 2Cores -25Cores

Cross-section：0.5mm²、0.75mm²、1.0mm²、1.5mm²、2.5mm²、4mm²

Rated Voltage：

450/750V 300/500V

Standard：

Standard: DIN VDE0295 Cable, Wire, Soft Line of Conductor for Electrical Equipment

Products Introduction：

Apply to equipment control system with AC rated voltage up to and including 450/750V，the wind power generation and various portable electrical equipment which require the performance of flexibility, bending, bearing great external mechanical forces, weather proof, anti-UV, anti-Ozone, anti-oil, cold-resistance, halogen-free and flame retardant. The cable should have the characteristics of flexible and small bending radius.

Cable Structure Drawing：

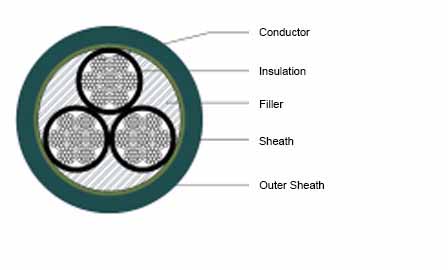

3Cores

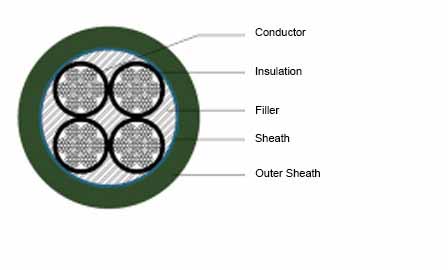

 4Cores

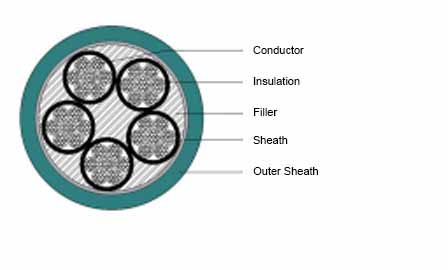

5Cores
