Type：

WDZC-YJY

Main Specification：

Number of Cores： 1Cores

Cross-section：4mm²、6mm²、10mm²、16mm²、25mm²、35mm²、50mm²、70mm²、95mm²、120mm²、150mm²、185mm²、240mm²、300mm²、400mm²、500mm²

Rated Voltage：

0.6kV/1kV

Standard：

Standard: GB/T 12706 Rated Voltage 1kV(Um=1.2kV) to 35kV(Um=40.5kV) Extruded Insulation Power Cable and Accessories

Products Introduction：

Apply to power system with AC rated voltage up to and including 600/1000V，the wind power generation and various portable electrical equipment which require the performance of flexibility, bending, bearing great external mechanical forces, weather proof, anti-UV, anti-Ozone, anti-oil, cold-resistance, halogen-free and flame retardant.

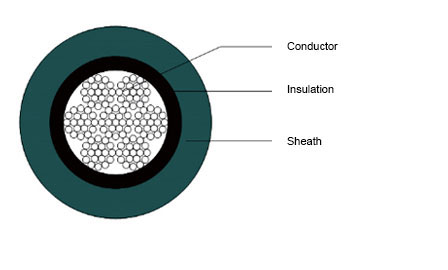

Cable Structure Drawing：

1Cores
