10kV Low-temp. High Strength Overhead Insulation Wire
|
Type：
|
JKLHYJ、JKLHYJ/Q、JKLHY、JKLHY/Q
|
|
Main Specification：
|
Number of Cores： 1Cores
Cross-section：10mm²、16mm²、25mm²、35mm²、50mm²、70mm²、95mm²、
120mm²、150mm²、185mm²、240mm²、300mm²、400mm²
|
|
Rated Voltage：
|
10kV
|
|
Standard：
|
Standard：GB/T 14049 Rated Voltage 10kV Overhead Insulation Wire
|
|
Products Introduction：
|
Apply to power transmission between AC rated voltage 10kV blower box and transformer substation or similar area, with the performances of ability to bear external mechanical forces, weather-resistance, anti-UV, ozone resistance ,cold-resistance,etc.
|
|
Cable Structure Drawing：
|

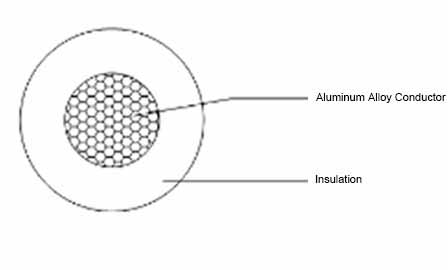

Cable Structure Drawing of 10kV Light Low-temp. High Strength Overhead Insulation Wire（JKLHY/Q and JKLHYJ/Q ）
|
|

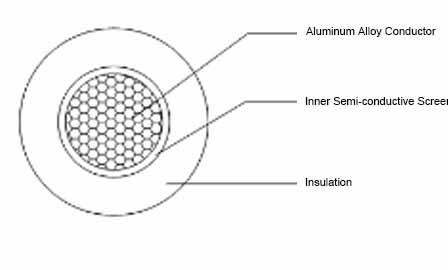

Cable Structure Drawing of 10kV Low-temp. High Strength Overhead Insulation Wire（JKLHYJ/JKLHY）
|
|
