Type：

MYJV、MYJV22、MYJV32、MYJV42

Main Specification：

Number of Cores： 3 Cores， 3+1 Cores， 4 Cores

Cross-section：1.5～300mm²

Rated Voltage：

0.6/1kV、3.6/6kV、6/6kV、6/10kV、8.7/10kV

Standard：

Standard：MT818.12、MT818.13、MT386

Products Introduction：

The Power Cable is fixed laying for coal mining. Apply to: Rated Voltage for coal mining of 10kV and below, power transmission and distribution system. Characteristic: Large transmission capacity, high operating temp., excellent electrical properties and flame-retardant property. The long-term operating temp. of XLPE insulated cable shall not exceed 90℃. The laying temp. shall not be less than 0℃. The minimum bending radius of the cable is 15 times as the diameter of the cable. Products Certification: Safety Mark Certificate of Coal Mining Products

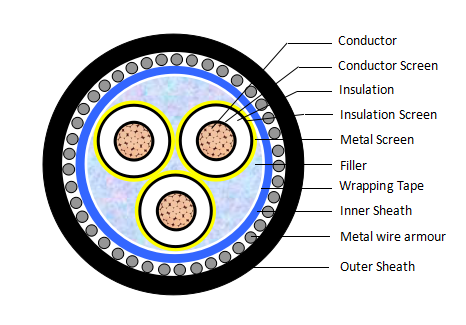

  Cable Structure Drawing：
